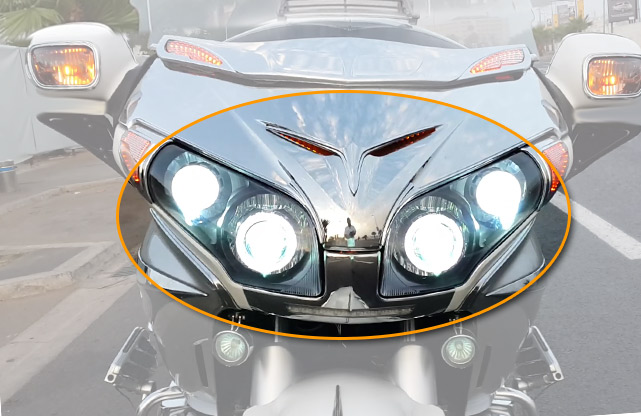

TRS GL1800-HIDKI-WB - Kit à 4 projecteur HID Bi-Xenon avec Cercle LED Blanc et Blue Deamon eyes
Optiques à Oeil d'ange Blanc (Angel Eyes) avec oeil démon blue/demon eyes chromé avec projecteur HID Xenon Quad veilleuse/Phare

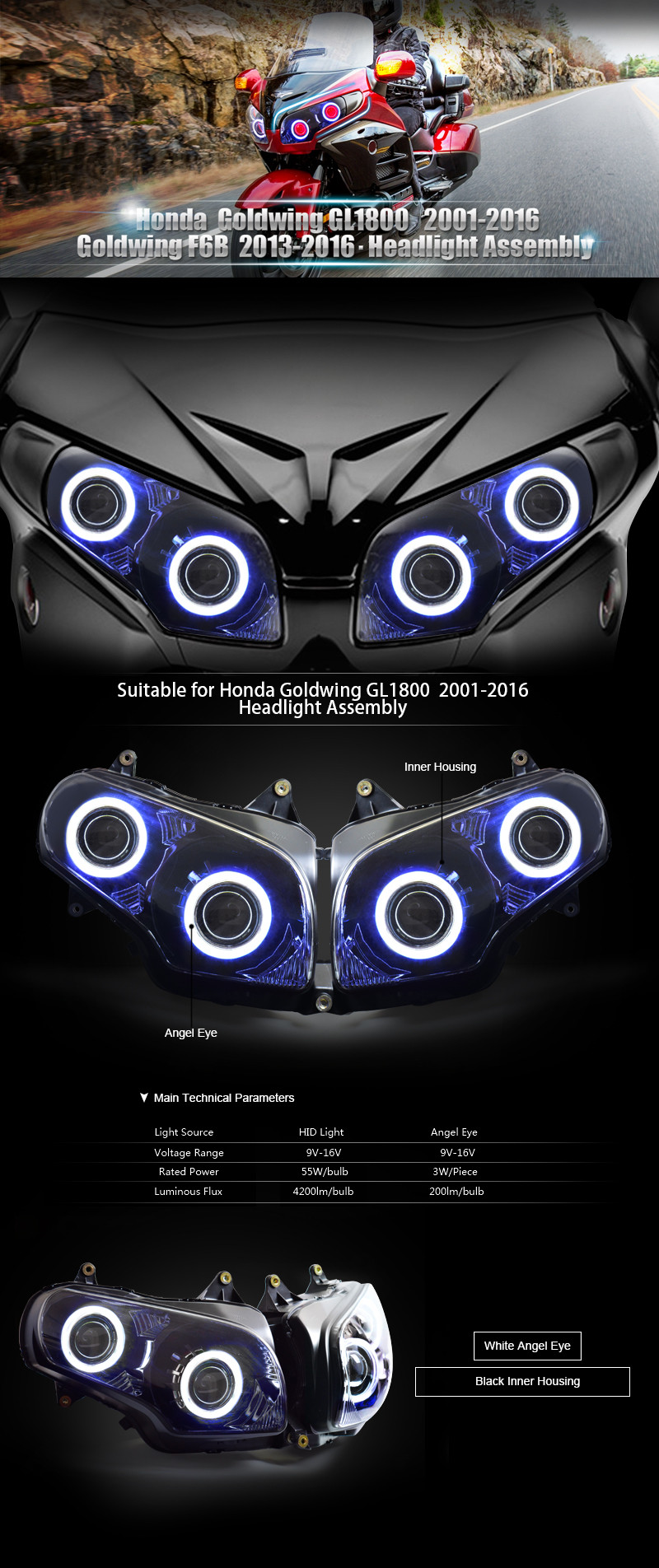

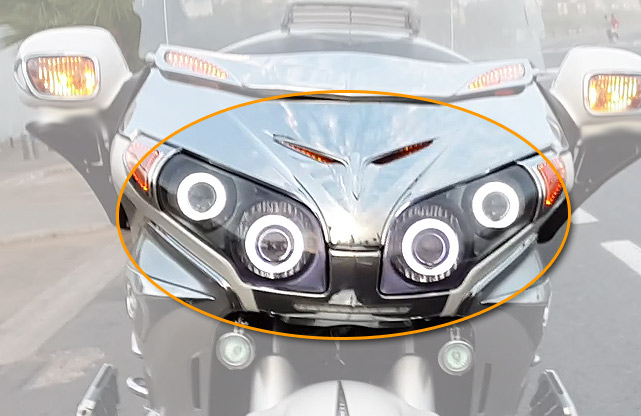

Assemblée personnalisée de phare pour la Honda GoldWing GL1800 modèle 2001 à 2017

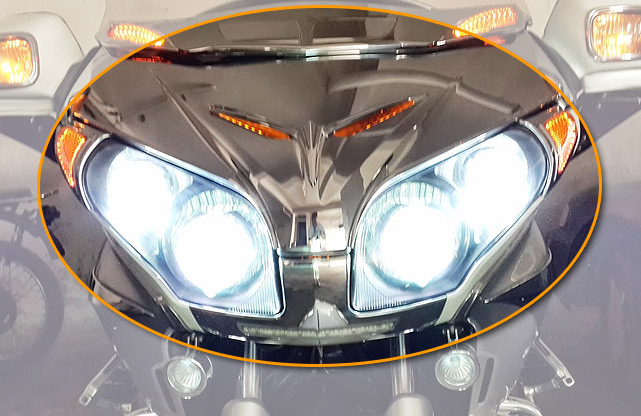

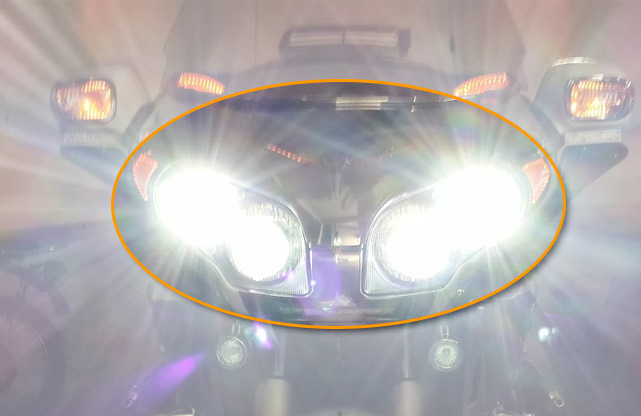

300% plus lumineux, Feux de Phares à Quad Bi-Xenon 300% plus fort que le phare d'origine et Quad Bi-Xenon 300% feux veilleuse. Faisceau de lumière bas la ligne qui n'aveugler pas les véhicule sens contraire
Installation facile, remplacent directement les optique d'origines Honda de votre Goldwing !
1. Parameters of HID bulbStarting Voltage: 23 KV
Rated Power: 55W ( 20% Brighter than regular 35W HID Kit or HID Projector )
Bulb Life-span: 3500H
Color Temperature: 3000K,4300K, 6000K, 8000K, 10000K (optional)
2. Parameters of Angel EyesInput Voltage: 12V
Rated Power: 3W
Color: white / red / blue / green / yellow / purple (optional)
3. Parameters of Demon Eyes ( built inside the projector)Input Voltage: 12V
Rated Power: 3V
Color: red / blue / green / yellow (optional)

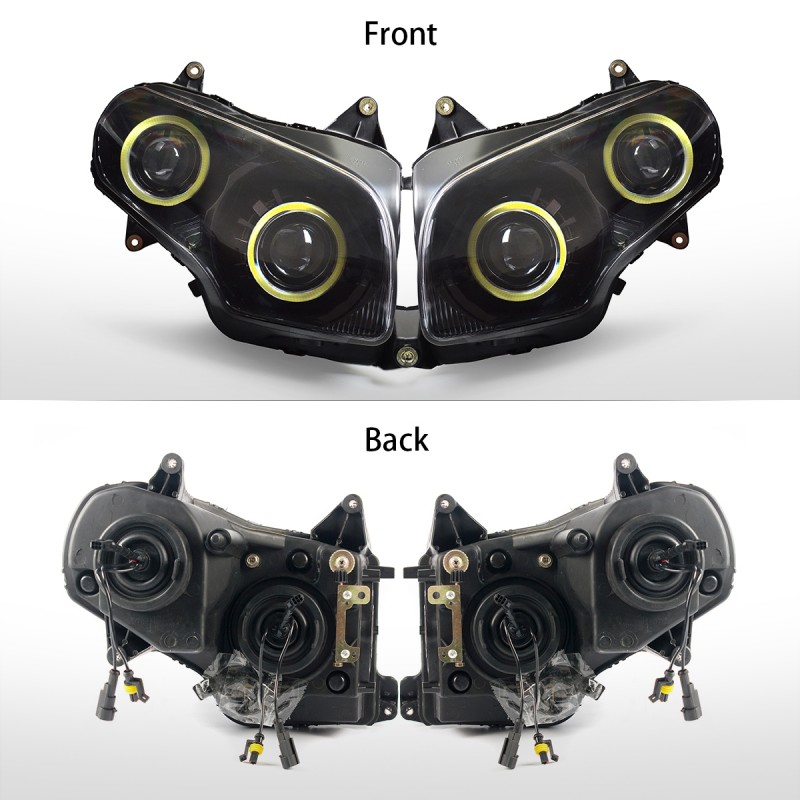

Honda Gold Wing GL1800 Custom Headlight Assembly 2001 to 2017 directly replace the OEM headlight.
5. Packing List
1 X Headlight Assembly Honda Honda Gold Wing GL1800 Left & Right ( 2001-2017)
4 X HID Projector with HID bulb ( high low beam function)
4 X High Quality 55W Extra Slim Digital HID Ballast
4X CCFL Angel Eye with igniter
4 X CCFL Demon Eye with igniter ( Optional)

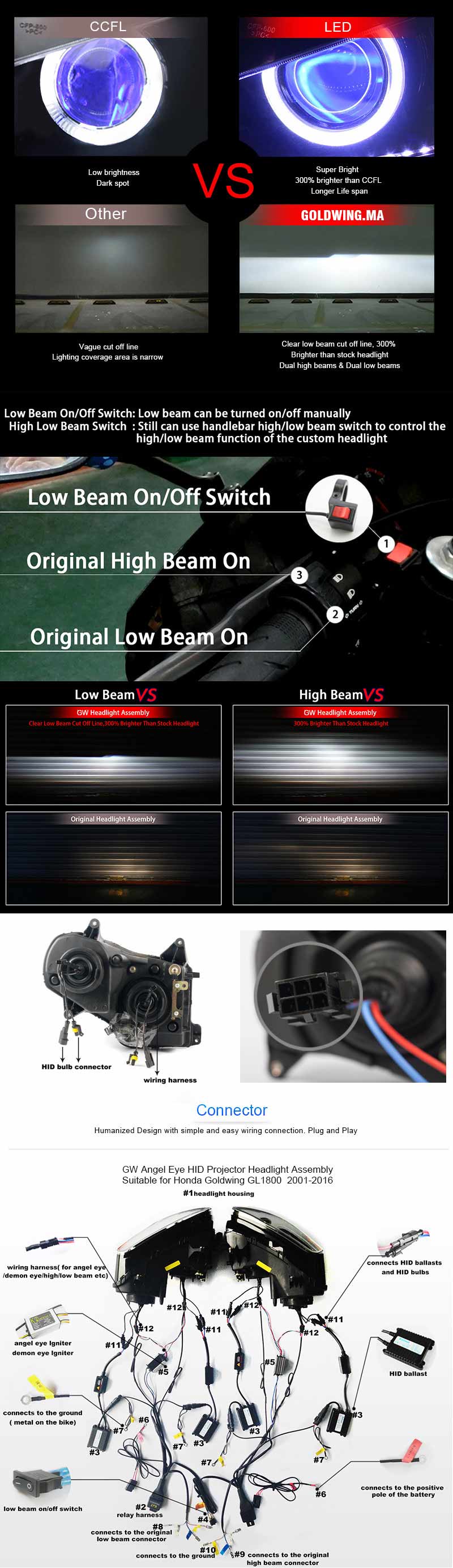

1 X Relay Wiring Harness ( connect to the battery and original high/low beam switch)
Frequently Asked Questions/Quéstion Réponses
1. What’s angel eye?

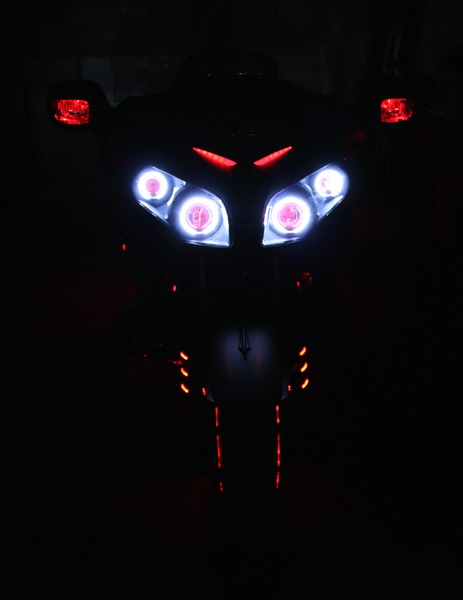

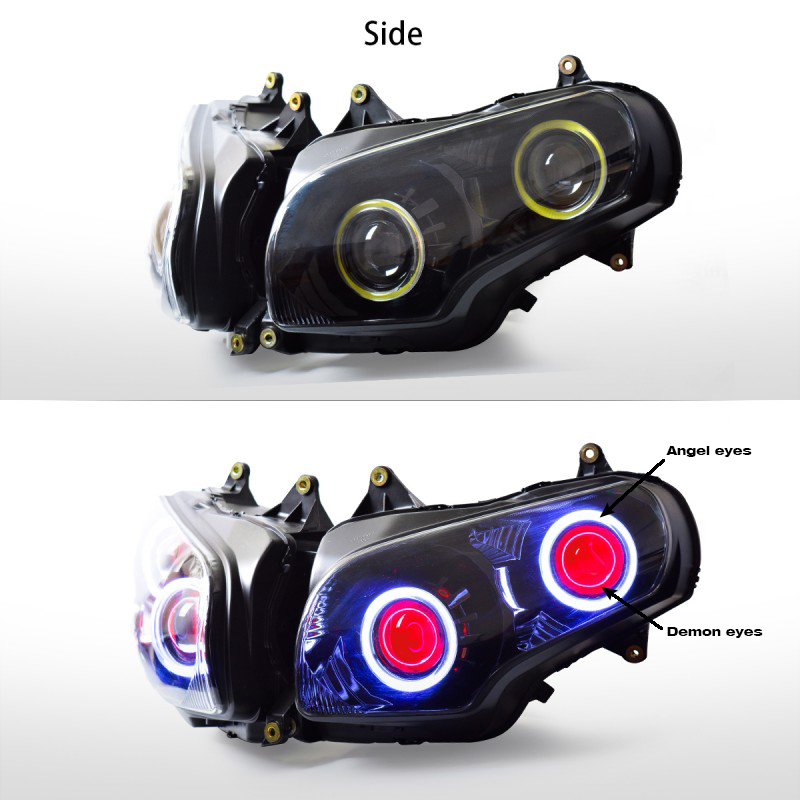

The angel eye is the CCFL (cold cathode fluorescent lighting) light attached around the projector lens, it will be light up by using angel eye inverter (igniter). Normally, several different colors are available for the angel eyes, such as White, Blue, Red, Green and Yellow. You can choose one desired color among those.
2. What’s demon (devil) eye?

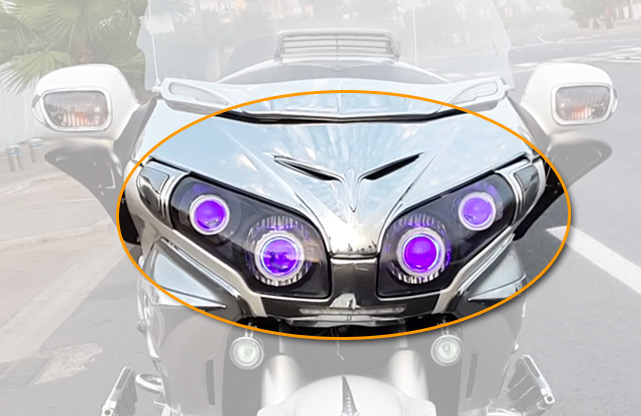

The demon (devil) eye is the CCFL light built inside the projector lens, it will be light up by using demon eye inverter (igniter), different from angel eye, and the demon eye light will emitting out from the projector lens. In most case, the demon eye will be light up at the same time with angel eye. Demon eye light will be disappeared once the main light has been turn on. When the main light be turned off, demon eye appears again! Normally, several different colors are available for the demon eyes, such as Blue, Red and Green. You can choose one desired color among those.
3. How does the angle eye or demon eye work?
It will be light up by using angel eye /demon eye inverter (igniter), and normally it will be connected to the driving light. It can also be used as daytime running light.

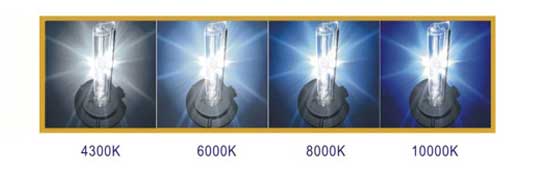

4. Which bulb color shall I choose?
Many people believe that the higher the color temperature the brighter the lamp. This is totally wrong. The color temperature is purely a scale to measure the color of the light output. It is a reference purely for color and could equally be called White, Green or Blue.
The reality is the higher up the scale the lamps are the less bright they become. 6000K lamps are approx 5-10% brighter (measured in Lumens, not degrees K) than the 8000K. 4300K has better penetration compare with 6000K, particalur in the rainy day or mist days. And 6000K is the best combination of the color and brightness! 8000K and 10000K looks cool and attractiveness with quite satisfied light output, much brighter than stock halogen bulb.
Degrees K = only color Lumen = Brightness
5. Do I need to buy extra accessory to complete the installation?
The HID projector headlight assembly has included all necessary accessories you need for installation.
Headlight assembly HID projector, HID bulb, HID Ballast, wiring harness, angel eye and demon eye (optional)
6. Can I install it by myself?
We suggest the this custom headlight be installed by professional mechanic to ensure the performance. If the retrofitter familiar with the lighting system, and consider the high labor costs, retrofitter may do it by themselves and following the instruction manual.
7. How long for the warranty? How can I claim the warranty if defective found, do I need to send back the defective item?
One year warranty will be offered for this custom headlight assembly, if the defective (malfunction) is found during the warranty period, we will provide free spare parts to replace the defective one, consider the high shipping cost and customer tax, we don’t need our customers send back defective item to us, in most cases, we will require customers to send pictures or video to proof the defective or malfunction. Shipping costs for replacement spare parts will be borne on customer’s side. If defective (malfunction) is found after the warranty period, we can also provide spare parts with reasonable price.
